With our vast knowledge of Display industry people all over Asia, we are a reliable, quality and of course, long term relationship supplier.
Our portfolio is composed of TFT and FSTN technology displays.
TFT technology
Below are some of our products available in Europe. Note all our portfolio is present here, if you don’t find the size/resolution you are looking for, just contact us for more details.
| Size | Name | Active Area | main features |
|---|---|---|---|
| 2.4″ | IO024I0008 | 36.72 x 48.96 mm² | QVGA, 800cd/m², NB |
| 3″ | IO030D0056 | 60.0 x 45.0 mm² | VGA, 550cd/m², NB, DSC |
| 3.5″ | IO035I00016 | 70.08 x 52.56 mm² | QVGA, 300cd/m² |
| 4.3″ | IO043I0006_v2 | 95.04 x 53.85 mm² | WQVGA, 430cd/m² |
| – | IO043I0014 | 95.04 x 53.85 mm² | WQVGA, wide VA, 430cd/m² |
| – | IO043I0021 | 56.16 x 93.60 mm² | WVGA, portrait mode, 400cd/m² |
| 5″ | IO050I0022 | 81.88 x 110.02 mm² | FHD, 400cd/m² , NB, MIPI DSI |
| – | IO050I0040 | 108.0 x 64.8 mm² | WVGA, 650cd/m² |
| 5.7″ | IO057I0027 | 115.2 x 86.4 mm² | VGA, 700 cd/m² |
| 7″ | IO070I0005_v2 | 154.08 x 85.92 mm² | WVGA, 400cd/m² |
| – | IO070I0025 | 152.40 x 91.44 mm² | WVGA, 500cd/m², LVDS |
| 10.1″ | IO101N0038_v2 | 216.96 x 135.6 mm² | HD+, 300 cd/m², NB, LVDS |
| 10.4″ | IO104I0062 | 211.2 x 158.4 mm² | SVGA, 300cd/m², LVDS |
| 15″ | IO150I0023 | 307.2 x 231.1 mm² | XGA, 300cd/m², NB, LVDS |
– Some definitions to understand the table:
Resolution
- QVGA: 320×240
- VGA: 640×480
- WQVGA: 480×272
- WVGA: 800×480
- SVGA: 800×600
- WSVGA: 1024×600
- XGA: 1024×768
- HD: 1280×720
- FHD: 1920×1080
Optical Performances
- NB: Normally Black technology
- Wide VA: Wide Viewing Angle for Landscape or Portrait use, Normally White technology
Interface
- MIPI DSI: MIPI Digital Serial Interface
- DSC: Camera Interface
- LVDS: LVDS interface
- eDP: embedded Display Port
FSTN technology
FSTN is a robust technology which is perfect when information to be displayed does not require a large color range or high resolution. Reflective, with or without back-light, custom designs are simple. It is a perfect solution for icons, characters and up to QVGA graphics:
- Handheld measurement
- Metric display
- Outdoor use and direct sunlight
- Robust and simple dashboards
ImaginOrient FSTN standard products are in the table below:
| Size | Name | Active Area | main features |
|---|---|---|---|
| 1.9” | IO019G0002 | 40.95 x 24.31 mm² | 128×64, 50 cd/m² |
| – | IO019G0007 | 40.95 x 24.31 mm² | 128×64, Reflective |
| 3.2″ | IO032G0034 | 66.55 x 33.27 mm² | 128×64, 3 cd/m² |
| – | IO032G0037 | 66.55 x 33.27 mm² | 128×64, Reflective |
| 3.9″ | IO039G0035 | 76.78 x 57.58 mm² | 320×240, 20 cd/m² |
Negative Blue FSTN, In-Cell Touch
Multiple Color FSTN can be developed on a custom base.
Contact us if you don’t find your needs in standard list or need a custom design !
Display Systems
Display systems can be addressed as a display module only, or as a System. A Display system can be the combination of a display module with a Touch Panel, a specific interface or even a CPU board.
Dual glass Capacitive TP lamination on a LCD display module (detail)
ImaginOrient Europe can take care for you of the assembly, testing and qualification of Display Components/Modules with other devices.
- Lamination of Touch Panels interfaces, usualy done in a specific clean room facility to prevent dust/forein particles from degrading end product quality
- Development, test and integration of specific interface boards
- Development of more complex CPU-based systems, including SW tests

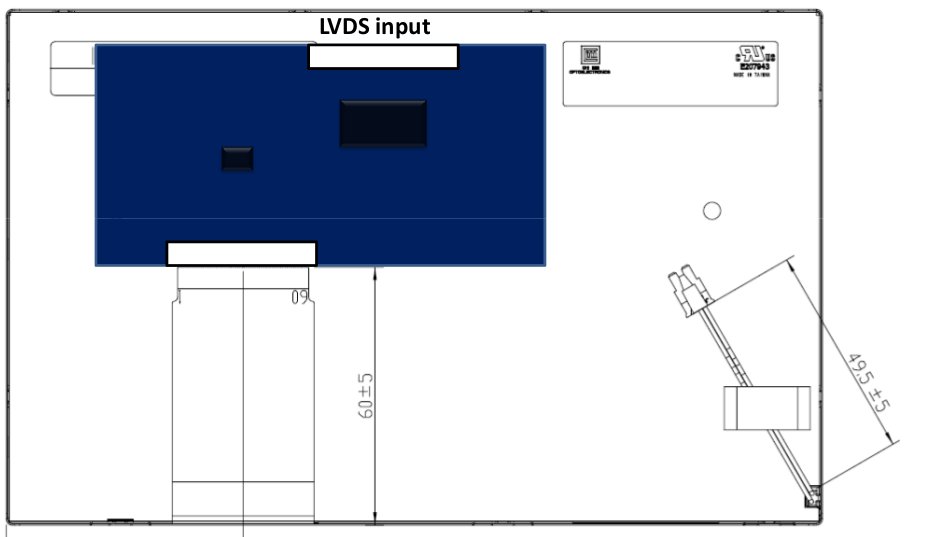

LVDS interface board fitted behind a standard TTL display module
